P-cycle: 3 pools (DIP+DOP+POP)
This tutorial expands the previous 2-pool DIP+POP P-cycle to also track dissolved organic phosphorus (DOP). Phosphorus is conserved exactly across the three pools: every mole removed by any uptake or dissolution/remineralization is allocated to one of DIP, DOP, or POP. Both DIP and DOP are taken up by phytoplankton, and a shared fraction
We use the OCIM0 circulation.
julia
using AIBECS
using JLD2 # required by `OCIM0.load`
using Unitful
using Unitful: m, d, yr, Myr, mol, mmol, μmol, NoUnits
import AIBECS: @units, units
import AIBECS: @initial_value, initial_valueThe dissolved phases (DIP, DOP) ride the OCIM0 circulation; the particulate phase (POP) sinks with depth-dependent speed
julia
grd, T_OCIM0 = OCIM0.load()
T_DIP(p) = T_OCIM0
T_DOP(p) = T_OCIM0
T_POP(p) = transportoperator(grd, z -> w(z, p))
function w(z, p)
@unpack w₀, w′ = p
return @. w₀ + w′ * z
end
z = depthvec(grd)191169-element Vector{Float64}:
18.0675569520817
18.0675569520817
18.0675569520817
18.0675569520817
18.0675569520817
18.0675569520817
18.0675569520817
18.0675569520817
18.0675569520817
18.0675569520817
⋮
5433.2531421838175
5433.2531421838175
5433.2531421838175
5433.2531421838175
5433.2531421838175
5433.2531421838175
5433.2531421838175
5433.2531421838175
5433.2531421838175Uptake by phytoplankton (DIP and DOP), saturating in concentration and restricted to the euphotic layer
julia
function U_DIP(DIP, p)
@unpack τ_DIP, k_DIP, z₀ = p
return @. DIP / τ_DIP * DIP / (DIP + k_DIP) * (z ≤ z₀) * (DIP ≥ 0)
end
function U_DOP(DOP, p)
@unpack τ_DOPup, k_DOP, z₀ = p
return @. DOP / τ_DOPup * DOP / (DOP + k_DOP) * (z ≤ z₀) * (DOP ≥ 0)
endU_DOP (generic function with 1 method)Remineralization (DOP → DIP) and dissolution (POP → DOP), linear:
julia
function R_DOP(DOP, p)
@unpack τ_DOPrem = p
return DOP / τ_DOPrem
end
function D_POP(POP, p)
@unpack τ_POPdiss = p
return POP / τ_POPdiss
endD_POP (generic function with 1 method)The per-pool source/sink terms — note the shared
julia
function G_DIP(DIP, DOP, POP, p)
@unpack DIP_geo, τ_geo = p
return @. -$U_DIP(DIP, p) + $R_DOP(DOP, p) + (DIP_geo - DIP) / τ_geo
end
function G_DOP(DIP, DOP, POP, p)
@unpack σ = p
return @. σ * $U_DIP(DIP, p) - $R_DOP(DOP, p) - (1 - σ) * $U_DOP(DOP, p) + $D_POP(POP, p)
end
function G_POP(DIP, DOP, POP, p)
@unpack σ = p
return @. (1 - σ) * $U_DIP(DIP, p) + (1 - σ) * $U_DOP(DOP, p) - $D_POP(POP, p)
endG_POP (generic function with 1 method)Parameters:
julia
@initial_value @units struct PmodelParameters{U} <: AbstractParameters{U}
w₀::U | 0.64 | m / d
w′::U | 0.13 | m / d / m
τ_DIP::U | 230.0 | d
k_DIP::U | 6.62 | μmol / m^3
τ_DOPup::U | 350.0 | d
k_DOP::U | 5.0 | μmol / m^3
z₀::U | 80.0 | m
τ_DOPrem::U | 0.25 | yr
τ_POPdiss::U | 5.0 | d
σ::U | 1 / 3 | NoUnits
τ_geo::U | 1.0 | Myr
DIP_geo::U | 2.12 | mmol / m^3
end
p = PmodelParameters()Main.PmodelParameters{Float64}
w₀ = 0.64 (m d⁻¹)
w′ = 0.13 (d⁻¹)
τ_DIP = 230.0 (d)
k_DIP = 6.62 (μmol m⁻³)
τ_DOPup = 350.0 (d)
k_DOP = 5.0 (μmol m⁻³)
z₀ = 80.0 (m)
τ_DOPrem = 0.25 (yr)
τ_POPdiss = 5.0 (d)
σ = 0.3333333333333333 ()
τ_geo = 1.0 (Myr)
DIP_geo = 2.12 (mmol m⁻³)Build and solve:
julia
nb = sum(iswet(grd))
F = AIBECSFunction((T_DIP, T_DOP, T_POP), (G_DIP, G_DOP, G_POP), nb)
@unpack DIP_geo = p
x0 = DIP_geo * ones(3nb)
prob = SteadyStateProblem(F, x0, p)
sol = solve(prob, CTKAlg(), preprint = " ")retcode: Success
u: 573507-element Vector{Float64}:
0.0017513873924220836
0.001777578834000493
0.0015888760790634256
0.0015217848497215843
0.0014595134192233437
0.0014299340631325316
0.0013724305380298006
0.0014628102906682713
0.0013715943941182245
0.0012942414529286321
⋮
2.7545992158331333e-9
1.936202063541435e-9
2.078970892332983e-9
2.8293522783868193e-9
2.909462497990013e-9
2.8247987797471838e-9
3.1012558158345998e-9
2.9854842005574325e-9
3.056094364278298e-9The sol value above carries the retcode, stats, and the residual norm — use it to confirm convergence before unpacking the state.
julia
DIP, DOP, POP = state_to_tracers(sol.u, grd)([0.0017513873924220836, 0.001777578834000493, 0.0015888760790634256, 0.0015217848497215843, 0.0014595134192233437, 0.0014299340631325316, 0.0013724305380298006, 0.0014628102906682713, 0.0013715943941182245, 0.0012942414529286321 … 0.0015298321383126758, 0.0015306742248851074, 0.0015170079211880216, 0.0015170027463308807, 0.0021160095946224523, 0.002117396611849004, 0.002114381258709922, 0.0021055851016566346, 0.0021133312144984407, 0.00211617432420201], [0.0003883362185404378, 0.00038761213894674545, 0.00037217001346781135, 0.0003562432918415918, 0.0003273584585375639, 0.0003032257097091366, 0.0002877358627724638, 0.00027019066570967566, 0.0002830842984582961, 0.0002846554483452318 … 5.299125363256648e-8, 5.04743264305583e-8, 3.499506324873947e-8, 3.708486074921148e-8, 5.1867081900016373e-8, 5.4175017906469774e-8, 5.280290085792899e-8, 5.263491554811436e-8, 5.3133946293723525e-8, 5.543101618596354e-8], [1.6644999066513602e-5, 1.6859364214794638e-5, 1.5201768715429868e-5, 1.4555270082681296e-5, 1.3877982226724268e-5, 1.3499244460304522e-5, 1.2935070991651323e-5, 1.359238519848817e-5, 1.2902627279069797e-5, 1.2266426584571363e-5 … 2.952000470088496e-9, 2.7545992158331333e-9, 1.936202063541435e-9, 2.078970892332983e-9, 2.8293522783868193e-9, 2.909462497990013e-9, 2.8247987797471838e-9, 3.1012558158345998e-9, 2.9854842005574325e-9, 3.056094364278298e-9])We plot zonal averages of the 3 tracers (rows) across the Atlantic, Pacific, and Indian basins (columns), with one colorbar per row on the right.
julia
using CairoMakie
using MakieExtra
using OceanBasins
using Unitful: ustrip
CairoMakie.activate!(type = "png")
Makie.get_ticks(t::Tuple{Any, Any},
::Union{MakieExtra.SymLog, MakieExtra.AsinhScale},
::Makie.Automatic, vmin, vmax) = t
OCEANS = oceanpolygons()
masks = (
Atlantic = isatlantic(latvec(grd), lonvec(grd), OCEANS),
Pacific = ispacific( latvec(grd), lonvec(grd), OCEANS),
Indian = isindian( latvec(grd), lonvec(grd), OCEANS),
)
basins = (:Atlantic, :Pacific, :Indian)
lat = ustrip.(grd.lat)
depth = ustrip.(grd.depth)
latticks = (-90:30:90, ["90°S", "60°S", "30°S", "0°", "30°N", "60°N", "90°N"])
maxdepth = ceil(maximum(depth) / 1000) * 1000
function wetlatrange(zm, pad = 5)
haswet = [any(!isnan, view(zm, i, :)) for i in eachindex(lat)]
wetidx = findall(haswet)
isempty(wetidx) && return (-90.0, 90.0)
return (max(-90, lat[first(wetidx)] - pad),
min( 90, lat[last(wetidx)] + pad))
end
function nicelevels(data; n = 10)
hi = maximum(filter(isfinite, vec(data)))
raw = hi / n
mag = 10.0 ^ floor(log10(raw))
nice = (raw/mag < 1.5 ? 1.0 : raw/mag < 3.5 ? 2.0 : raw/mag < 7.5 ? 5.0 : 10.0) * mag
return collect(0:nice:(ceil(hi / nice) * nice))
end
function logishlevels(data; decades = 3)
hi = maximum(filter(isfinite, vec(data)))
hi_pow = Int(ceil(log10(hi)))
lo_pow = hi_pow - decades
candidates = sort!(vcat([0.0],
[a * 10.0^k for k in lo_pow:hi_pow for a in (1.0, 2.0, 5.0)]))
keep = candidates[candidates .≤ hi]
if !(hi in keep)
above = findfirst(c -> c > hi, candidates)
above !== nothing && push!(keep, candidates[above])
end
return keep
end
ticklabel(x) = isinteger(x) ? string(Int(x)) : string(round(x; sigdigits = 3))
symlog_thresh(levels) = (nz = filter(>(0), levels); isempty(nz) ? 1.0 : minimum(nz))

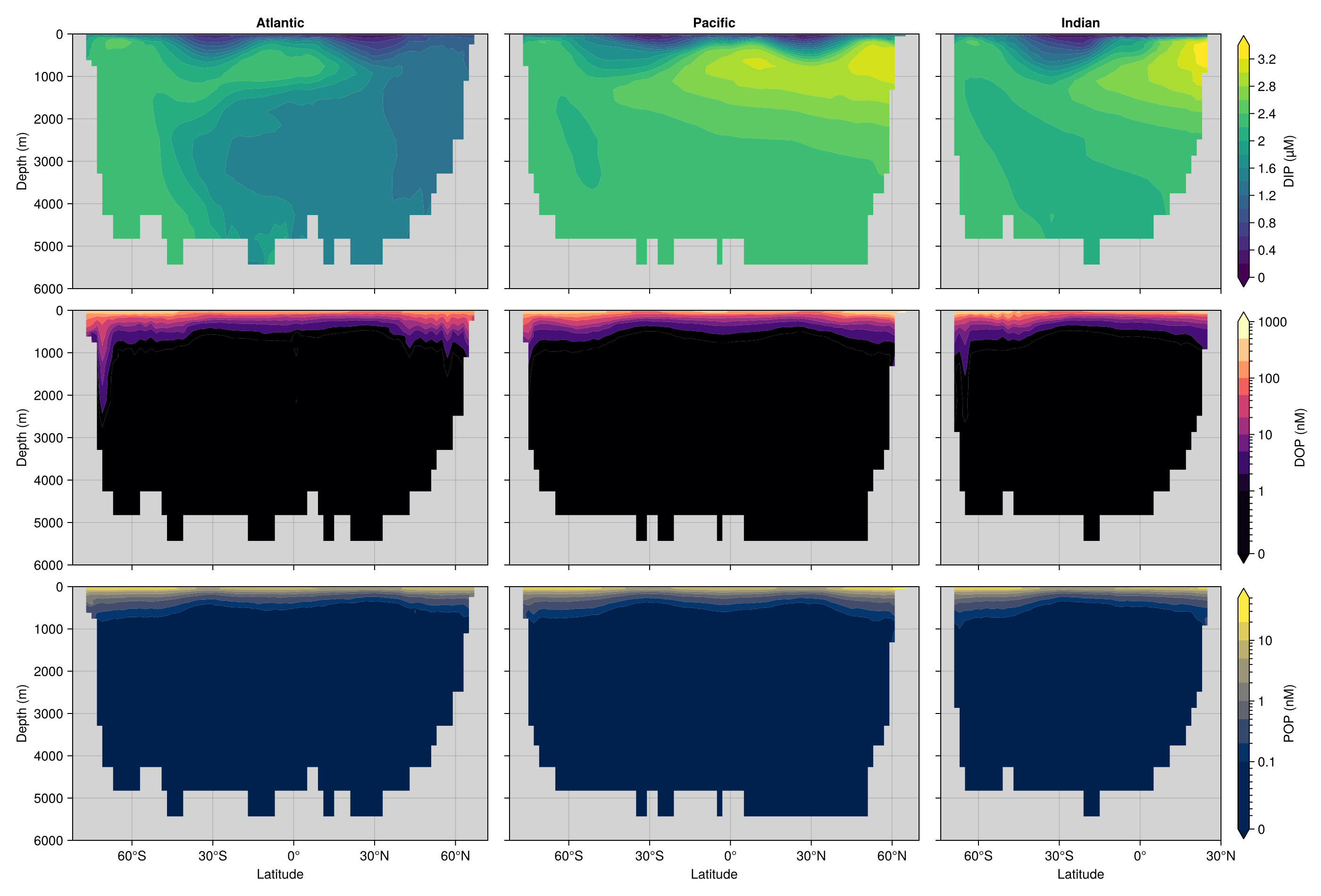

zm_data = Dict(
(:DIP, b) => ustrip.(u"μM", AIBECS.zonalmean(DIP * u"mol/m^3", grd, masks[b])) for b in basins
)
merge!(zm_data, Dict(
(:DOP, b) => ustrip.(u"nM", AIBECS.zonalmean(DOP * u"mol/m^3", grd, masks[b])) for b in basins
))
merge!(zm_data, Dict(
(:POP, b) => ustrip.(u"nM", AIBECS.zonalmean(POP * u"mol/m^3", grd, masks[b])) for b in basins
))
allvals(t) = vcat((vec(zm_data[(t, b)]) for b in basins)...)
levels_DIP = nicelevels(allvals(:DIP); n = 10)
levels_DOP = logishlevels(allvals(:DOP))
levels_POP = logishlevels(allvals(:POP))
xlim_basin = Dict(b => wetlatrange(zm_data[(:DIP, b)]) for b in basins)
rows = [
(name = :DIP, levels = levels_DIP, base_cmap = :viridis, scale = identity,
cblabel = rich("DIP (µM)")),
(name = :DOP, levels = levels_DOP, base_cmap = :magma,
scale = SymLog(symlog_thresh(levels_DOP)), cblabel = "DOP (nM)"),
(name = :POP, levels = levels_POP, base_cmap = :cividis,
scale = SymLog(symlog_thresh(levels_POP)), cblabel = "POP (nM)"),
]
fig = Figure(size = (1400, 950))
for (i, row) in enumerate(rows)
cmap = cgrad(row.base_cmap, length(row.levels) - 1; categorical = true)
cf_last = nothing
for (j, b) in enumerate(basins)
ax = Axis(fig[i, j];
backgroundcolor = :lightgray,
xticks = latticks,
yreversed = true,
limits = (xlim_basin[b][1], xlim_basin[b][2], 0, maxdepth),
xautolimitmargin = (0.0, 0.0),
yautolimitmargin = (0.0, 0.0),
xlabel = i == 3 ? "Latitude" : "",
ylabel = j == 1 ? "Depth (m)" : "",
title = i == 1 ? string(b) : "")
i < 3 && hidexdecorations!(ax;
ticklabels = true, label = true, ticks = false, grid = false)
j > 1 && hideydecorations!(ax;
ticklabels = true, label = true, ticks = false, grid = false)
cf_last = CairoMakie.contourf!(ax, lat, depth, zm_data[(row.name, b)];
levels = row.levels, colormap = cmap, nan_color = :lightgray,
extendlow = cmap[1], extendhigh = cmap[end],
colorscale = row.scale)
end
if row.scale === identity
cbticks = row.levels[1:2:end]
Colorbar(fig[i, length(basins) + 1], cf_last;
label = row.cblabel,
ticks = (cbticks, ticklabel.(cbticks)))
else
Colorbar(fig[i, length(basins) + 1], cf_last;
label = row.cblabel,
ticks = BaseMulTicks([1]),
minorticks = BaseMulTicks(2:9),
minorticksvisible = true)
end
end
for (j, b) in enumerate(basins)
colsize!(fig.layout, j, Auto(xlim_basin[b][2] - xlim_basin[b][1]))
end
fig
